Description

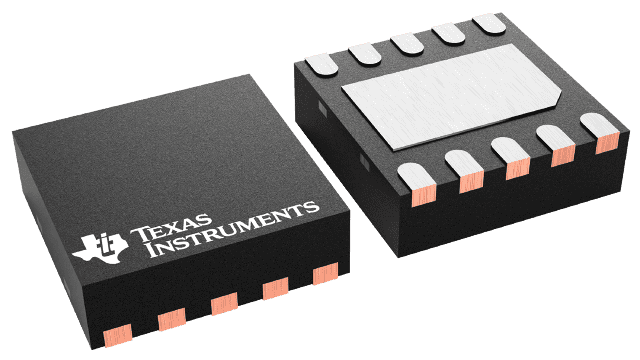

TPS7A9201DSKT Texas Instruments - Yeehing Electronics
2-A, low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator with high-accuracy
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.276 |
| 100 — 249 | 1.88 |
| 250 — 999 | 1.35 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SON-10 |
| Output Voltage | Adj |
| Output Current | 2 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6.5 V |
| Input Voltage MIN | 1.4 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 260 mV |
| Series | TPS7A92 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Regulators |
| Type | Low Noise LDO |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 400 mV |
| Output Voltage Range | 0.8 V to 5.2 V |
| PSRR / Ripple Rejection - Typ | 40 dB |
| Voltage Regulation Accuracy | 1 % |
| Development Kit | TPS7A91EVM-831 |
| Line Regulation | 0.003 %/V |
| Load Regulation | 0.03 %/A |
| Moisture Sensitive | Yes |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 0.8 V |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000921 oz |
For more information, please refer to datasheet
Documents
| TPS7A9201DSKT Datasheet |
More Information
The TPS7A92 is a low-noise (4.8 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 180 mV of dropout.
