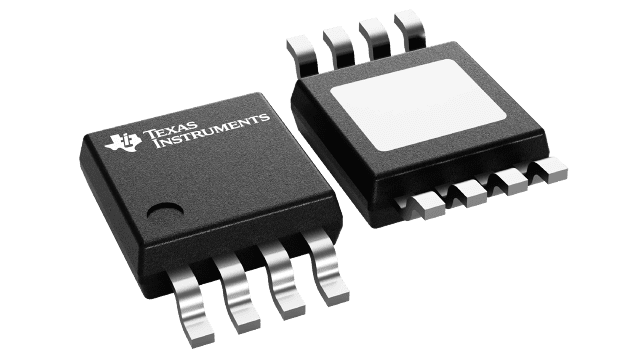

TPS7B8250QDGNRQ1 Texas Instruments - Yeehing Electronics
Automotive 300-mA, off-battery (40-V), ultra-low-IQ LDO with enable in AEC-Q100 Grade-0 and Grade-1
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.422 |
| 100 — 249 | 1.175 |
| 250 — 999 | 0.844 |
| 1,000 + | 0.44 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| Output Voltage | 5 V |
| Output Current | 300 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 2.7 uA |
| Input Voltage MAX | 40 V |
| Input Voltage MIN | 3 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Dropout Voltage | 400 mV |
| Series | TPS7B82-Q1 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 150 C |
| Product | LDO Regulators |
| Type | Automotive |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 700 mV |
| Output Voltage Range | - |
| PSRR / Ripple Rejection - Typ | 60 dB |
| Voltage Regulation Accuracy | 2 % |
| Line Regulation | 10 mV |
| Load Regulation | 20 mV |
| Moisture Sensitive | Yes |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000917 oz |
For more information, please refer to datasheet
Documents
| TPS7B8250QDGNRQ1 Datasheet |
More Information
In automotive battery-connected applications, low quiescent current (IQ) is important to save power and extend battery lifetime. Ultra-low IQ must be included for always-on systems.
