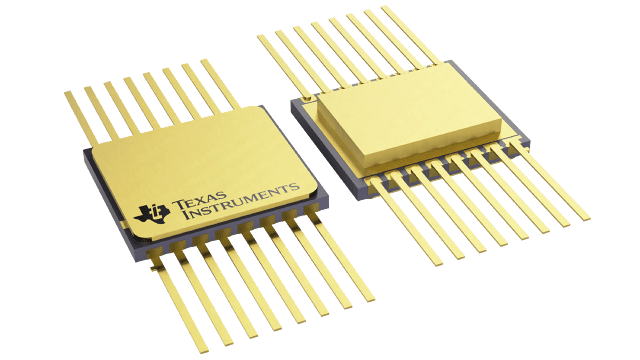

TPS7H1101HKR/EM Texas Instruments - Yeehing Electronics
Radiation-hardened QMLV, 1.5-V to 7-V input, 3-A low-noise adjustable low-dropout (LDO) regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 644.07 |
| 100 — 249 | 590.398 |
| 250 — 999 | 536.725 |
| 1,000 + | 450.85 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS7H1101HKR/EM Datasheet |
More Information
The TPS7H1101A-SP is an improved version of the TPS7H1101-SP allowing the use of the enable feature across the entire input voltage range. It is a radiation-hardened LDO linear regulator that uses a PMOS pass element configuration. It operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR. The TPS7H1101A-SP features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1101A-SP provides enable on and off functionality, programmable soft start, current sharing capability, and a Power Good open-drain output.
