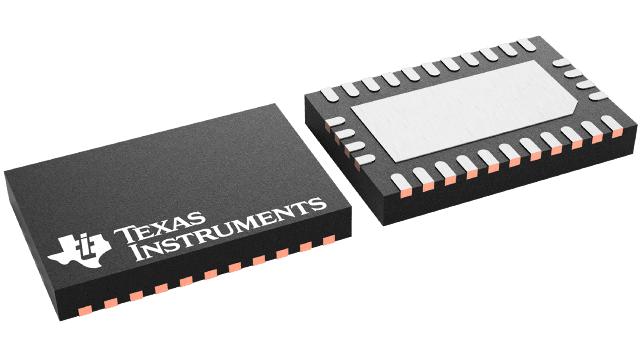

TPS7H4010MRNPTSEP Texas Instruments - Yeehing Electronics
Radiation-tolerant, 3.5-V to 32-V input, 6-A synchronous step-down converter in a plastic package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 549.31 |
| 100 — 249 | 503.534 |
| 250 — 999 | 457.758 |
| 1,000 + | 384.52 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS7H4010MRNPTSEP Datasheet |
More Information
The TPS7H4010-SEP is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 6 A of load current from a supply voltage ranging from 3.5 V to 32 V. The TPS7H4010-SEP provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization to an external clock, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency over the entire load range. The device requires few external components and has a pinout designed for simple PCB layout with optimal EMI and thermal performance. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limiting, and hiccup short-circuit protection.
