Texas Instruments
TPS81256SIPR
TPS81256SIPR
Regular price
$0.74 USD
Regular price
Sale price
$0.74 USD
Unit price
per
Couldn't load pickup availability

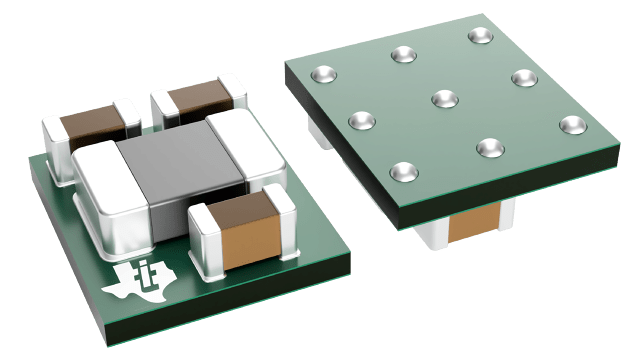

TPS81256SIPR Texas Instruments - Yeehing Electronics
Integrated Power Solution, 3W High-Efficiency boost converter module in MicroSiP™ package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.141 |
| 100 — 249 | 1.876 |
| 250 — 999 | 1.315 |
| 1,000 + | 0.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Non-Isolated DC/DC Converters |
| RoHS | Y |
| Product | Non-Isolated / POL |
| Number of Outputs | 1 Output |
| Output Power | 3 W |
| Input Voltage | 2.5 V to 5.5 V |
| Output Voltage-Channel 1 | 5 V |
| Output Current-Channel 1 | 700 mA |
| Mounting Style | SMD/SMT |
| Package / Case Size | 2.9 mm x 2.6 mm x 1 mm |
| Length | 2.9 mm |
| Width | 2.6 mm |
| Height | 1 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | DC |
| Packaging | Reel |
| Series | TPS81256 |
| Brand | Texas Instruments |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | Non-Isolated DC-DC Converters |
| Factory Pack Quantity | 3000 |
| Subcategory | DC-DC Converter |
| Unit Weight | 0.002222 oz |
For more information, please refer to datasheet
Documents
| TPS81256SIPR Datasheet |
More Information
The TPS81256 device is a complete MicroSiP DC/DC step-up power solution intended for battery-powered portable applications. Included in the package are the switching regulator, inductor and input/output capacitors. Only a tiny additional output capacitor is required to finish the design.
