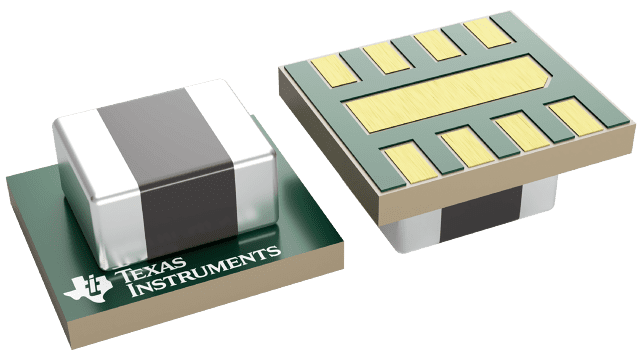

TPS82084SILR Texas Instruments - Yeehing Electronics

2-A, High-efficiency step-down converter module with integrated inductor

Pricing (USD)

Quantity	Unit Price
1 — 99	2.565
100 — 249	2.248
250 — 999	1.576
1,000 +	1.02

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	uSIP-8
Output Voltage	800 mV to 6 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	6 V
Topology	Buck
Input Voltage MIN	2.5 V
Switching Frequency	2.4 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS82084
Packaging	Reel
Input Voltage	2.5 V to 6 V
Operating Temperature Range	- 40 C to + 125 C
Product	Non-Isolated / POL
Quiescent Current	17 uA
Type	Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TPS82084EVM-672
Load Regulation	0.16 %/A
Moisture Sensitive	Yes
Operating Supply Current	17 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.5 V
Unit Weight	0.004938 oz

For more information, please refer to datasheet

Documents

TPS82084SILR Datasheet

More Information

The TPS82084/5 are 2-A/3-A step-down converter MicroSiP™ modules optimized for small solution size and high efficiency. The power module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment.
