Texas Instruments

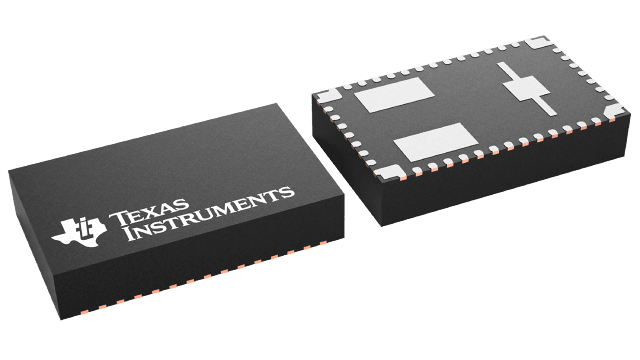

TPS84320RUQR
TPS84320RUQR
Regular price
$3.08 USD
Regular price
Sale price
$3.08 USD
Unit price
per
Couldn't load pickup availability
TPS84320RUQR Texas Instruments - Yeehing Electronics
4.5-V to 14.5-V Input, 3-A Synchronous Buck, Integrated Power Solution
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.096 |
| 100 — 249 | 6.6 |
| 250 — 999 | 5.188 |
| 1,000 + | 3.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | B1QFN-47 |
| Output Voltage | 0.8 V to 5.5 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 14.5 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 330 kHz to 780 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS84320 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 14.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | TPS84320EVM-692 |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.037475 oz |
For more information, please refer to datasheet
Documents
| TPS84320RUQR Datasheet |
More Information
The TPS84320RUQ is an easy-to-use integrated power solution that combines a 3-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution allows as few as 3 external components and eliminates the loop compensation and magnetics design process.
