Description

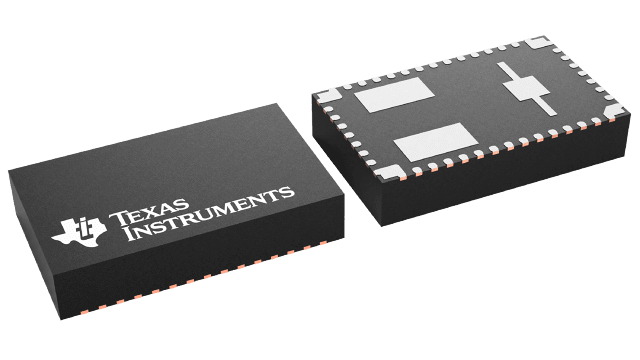

TPS84620RUQR Texas Instruments - Yeehing Electronics
4.5-V to 14.5-V Input, 6-A Synchronous Buck, Integrated Power Solution
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 9.721 |
100 — 249 | 8.491 |
250 — 999 | 6.547 |
1,000 + | 4.10 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | B1QFN-47 |
Output Voltage | 1.2 V to 5.5 V |
Output Current | 6 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 14.5 V |
Topology | Buck |
Input Voltage MIN | 4.5 V |
Switching Frequency | 480 kHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | TPS84620 |
Packaging | Reel |
Input Voltage | 4.5 V to 14.5 V |
Operating Temperature Range | - 40 C to + 85 C |
Product | Voltage Regulators |
Type | Synchronous Buck |
Brand | Texas Instruments |
Development Kit | TPS84620EVM-692 |
Load Regulation | 0.1 % |
Moisture Sensitive | Yes |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.037510 oz |
For more information, please refer to datasheet
Documents
TPS84620RUQR Datasheet |
More Information
The TPS84620RUQ is an easy-to-use integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution allows as few as 3 external components and eliminates the loop compensation and magnetics part selection process.
