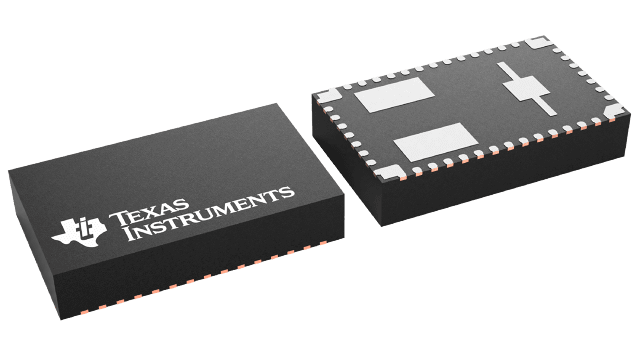

TPS84621RUQR Texas Instruments - Yeehing Electronics

2.95-V to 14.5-V Input, 6-A Synchronous Buck, Integrated Power Solution

Pricing (USD)

Quantity	Unit Price
1 — 99	9.495
100 — 249	8.294
250 — 999	6.395
1,000 +	4.00

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	B1QFN-47
Output Voltage	0.6 V to 5.5 V
Output Current	6 A
Number of Outputs	1 Output
Input Voltage MAX	14.5 V
Topology	Buck
Input Voltage MIN	2.95 V
Switching Frequency	250 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS84621
Packaging	Reel
Input Voltage	2.95 V to 14.5 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Voltage Regulator
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.037489 oz

For more information, please refer to datasheet

Documents

TPS84621RUQR Datasheet

More Information

The TPS84621 is an easy-to-use integrated power solution that combines a 6-A DC-to-DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process.
