Description

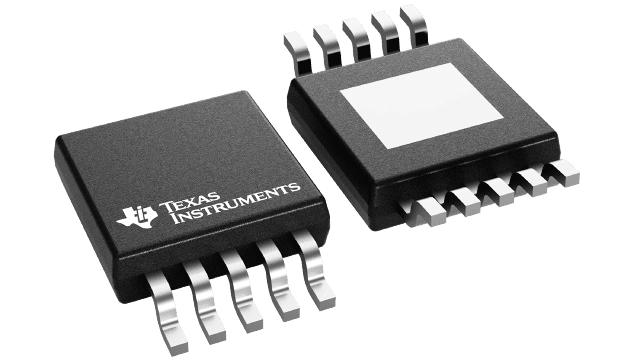

TPS92510DGQR Texas Instruments - Yeehing Electronics
1.5-A constant current buck converter for HB LEDs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.313 |
| 100 — 249 | 1.151 |
| 250 — 999 | 0.807 |
| 1,000 + | 1.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-10 |
| Series | TPS92510 |
| Packaging | Reel |
| Features | Adjustable Switch Frequency, Enable/Shutdown, Integrated Switch, Synchronization Pin, Thermal Shutd |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dimming | Analog,PWM |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000829 oz |
For more information, please refer to datasheet
Documents
| TPS92510DGQR Datasheet |
More Information
The TPS92510 is a 60-V, 1.5-A peak current-mode step-down converter with an integrated high-side MOSFET. It is specifically designed for driving high-brightness LEDs with a constant current. The tight-tolerance, 200-mV internal reference voltage reduces power dissipation in the current-sense resistor. A dedicated pulse width modulation input pin allows linear control of the light output.
