Description

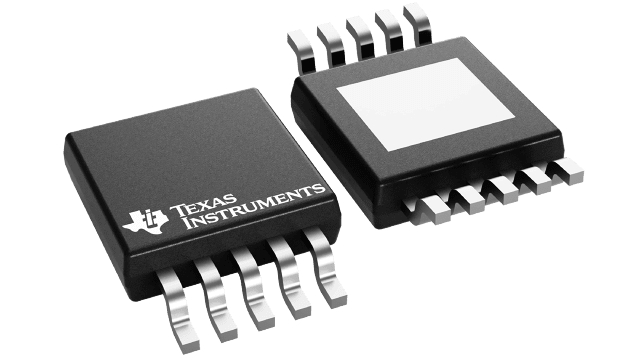

TPS92515DGQR Texas Instruments - Yeehing Electronics
42-V 2-A LED driver with integrated NFET, high-side current sense, and shunt PWM dimming capable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.572 |
| 100 — 249 | 1.299 |
| 250 — 999 | 0.933 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 1 Channel |
| Output Current | 2 A |
| Input Voltage | 5.5 V to 42 V |
| Operating Frequency | 2 MHz |
| Supply Current - Max | 1.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-10 |
| Series | TPS92515 |
| Packaging | Reel |
| Features | Brightness Control/Dimming, Integrated Switch, Thermal Shutdown |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LED Drivers |
| Type | Inductive |
| Brand | Texas Instruments |
| Topology | Buck |
| Dimming | Analog,PWM |
| Moisture Sensitive | Yes |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | Driver ICs |
| Tradename | PowerPAD |
| Unit Weight | 0.001146 oz |
For more information, please refer to datasheet
Documents
| TPS92515DGQR Datasheet |
More Information
The TPS92515 family of devices are compact monolithic switching regulators integrating a low resistance N-Channel MOSFET. The devices are intended for high-brightness LED lighting applications where efficiency, high bandwidth, PWM and/or analog dimming and small size are important.
