Texas Instruments
TPS92515HVDGQT
TPS92515HVDGQT
Regular price
$0.55 USD
Regular price
Sale price
$0.55 USD
Unit price
per
Couldn't load pickup availability

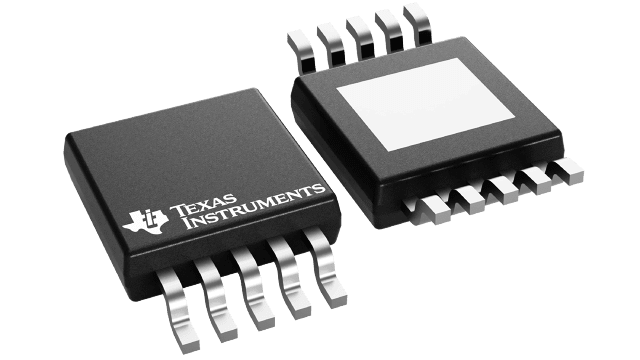

TPS92515HVDGQT Texas Instruments - Yeehing Electronics
65-V 2-A LED driver with Integrated NFET, high-side current Sense, and Shunt PWM dimming Capable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.139 |
| 100 — 249 | 1.767 |
| 250 — 999 | 1.269 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 1 Channel |
| Output Current | 2 A |
| Input Voltage | 5.5 V to 65 V |
| Operating Frequency | 2 MHz |
| Supply Current - Max | 1.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-10 |
| Series | TPS92515HV |
| Packaging | Reel |
| Features | Brightness Control/Dimming, Integrated Switch, Thermal Shutdown |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Constant Current |
| Product | LED Drivers |
| Type | Buck LED Driver |
| Brand | Texas Instruments |
| Topology | Buck |
| Dimming | Analog,PWM |
| Moisture Sensitive | Yes |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Driver ICs |
| Tradename | PowerPAD |
| Unit Weight | 0.001146 oz |
For more information, please refer to datasheet
Documents
| TPS92515HVDGQT Datasheet |
More Information
The TPS92515 family of devices are compact monolithic switching regulators integrating a low resistance N-Channel MOSFET. The devices are intended for high-brightness LED lighting applications where efficiency, high bandwidth, PWM and/or analog dimming and small size are important.
