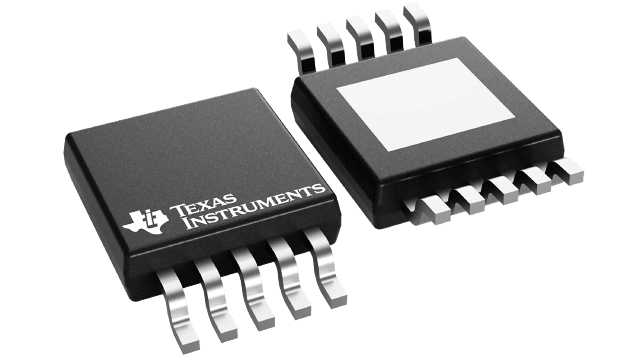

TPS92515HVQDGQTQ1


YeeHing #: Y012-TPS92515HVQDGQTQ1
Inventory: 5800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS92515HVQDGQTQ1 Texas Instruments - Yeehing Electronics

65-V automotive 2-A shunt-PWM dimmable LED driver with Integrated NFET and current calibration

Pricing (USD)

Quantity Unit Price
1 — 99 2.139
100 — 249 1.767
250 — 999 1.269
1,000 + 0.67

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LED Lighting Drivers
RoHS Y
Number of Channels 1 Channel
Output Current 2 A
Input Voltage 5.5 V to 65 V
Operating Frequency 2 MHz
Supply Current - Max 1.5 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case MSOP-PowerPad-10
Qualification AEC-Q100
Series TPS92515HV-Q1
Packaging Reel
Features Brightness Control/Dimming, Integrated Switch, Thermal Shutdown
Operating Temperature Range - 40 C to + 125 C
Output Type Constant Current
Product LED Drivers
Type Buck LED Driver
Brand Texas Instruments
Topology Buck
Moisture Sensitive Yes
Product Type LED Lighting Drivers
Factory Pack Quantity 250
Subcategory Driver ICs
Tradename PowerPAD
Unit Weight 0.001146 oz

For more information, please refer to datasheet

Documents

TPS92515HVQDGQTQ1 Datasheet

More Information

The TPS92515 family of devices are compact monolithic switching regulators integrating a low resistance N-Channel MOSFET. The devices are intended for high-brightness LED lighting applications where efficiency, high bandwidth, PWM and/or analog dimming and small size are important.
