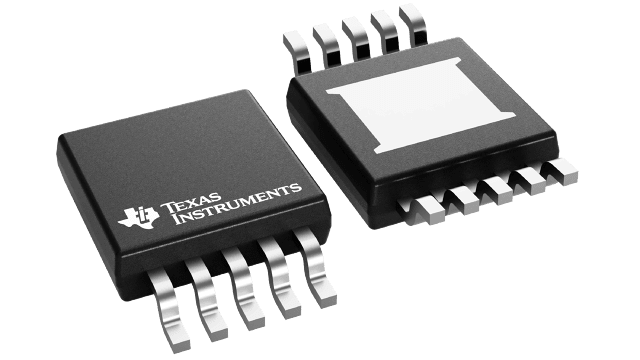

TPS92560DGQ/NOPB Texas Instruments - Yeehing Electronics

Simple LED driver for MR16 and AR111 Applications

Pricing (USD)

Quantity	Unit Price
1 — 99	0.806
100 — 249	0.666
250 — 999	0.478
1,000 +	0.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	1 Channel
Output Current	300 mA
Input Voltage	6.5 V to 42 V
Operating Frequency	1 MHz to 1.5 MHz
Supply Current - Max	1.95 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	MSOP-PowerPad-10
Series	TPS92560
Packaging	Reel
Features	Adjustable Switch Frequency, Thermal Shutdown, Work with Electronic Transformer
Operating Temperature Range	- 40 C to + 125 C
Output Type	Current Mode
Type	Inductive
Brand	Texas Instruments
Topology	Boost, SEPIC
Development Kit	TPS92560MR16BSTEVM
Dimming	Analog
Moisture Sensitive	Yes
Product Type	LED Lighting Drivers
Factory Pack Quantity	1000
Subcategory	Driver ICs
Unit Weight	0.000829 oz

For more information, please refer to datasheet

Documents

TPS92560DGQ/NOPB Datasheet

More Information

The TPS92560 is a simple LED driver designed to drive high-power LEDs by drawing constant current from the power source. The device is ideal for MR16 and AR111 applications, which require good compatibility to DC and AC voltages and electronic transformers. The hysteretic control scheme does not need control loop compensation while providing the benefits of fast transient response and high power factor. The patent pending feedback control method allows the output power to be determined by the number of LED used without component change. The TPS92560 supports both boost and SEPIC configurations for the use of different LED modules.
