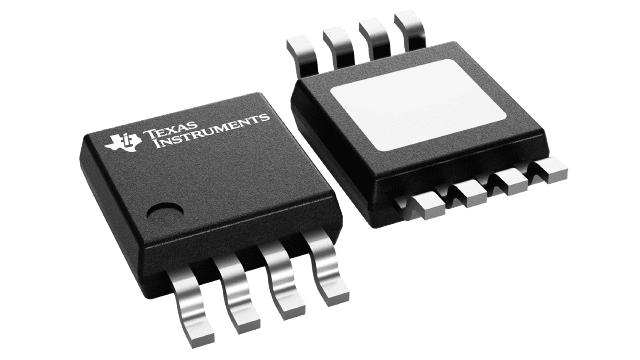

TPS92561DGN Texas Instruments - Yeehing Electronics

Phase dimmable, Single Stage boost controller for LED Lighting

Pricing (USD)

Quantity	Unit Price
1 — 99	0.672
100 — 249	0.555
250 — 999	0.399
1,000 +	0.21

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS92561DGN Datasheet

More Information

The TPS92561 device is a boost controller for LED lighting applications utilizing high-voltage, low-current LEDs. A boost converter approach to lighting applications allows the creation of the smallest volume converter possible and enables high efficiencies beyond 90%. The device incorporates a current sense comparator with a fixed offset enabling a simple hysteretic control scheme free of the loop compensation issues typically associated with a boost converter. The integrated OVP and VCC regulator further simplify the design procedure and reduce external component count.
