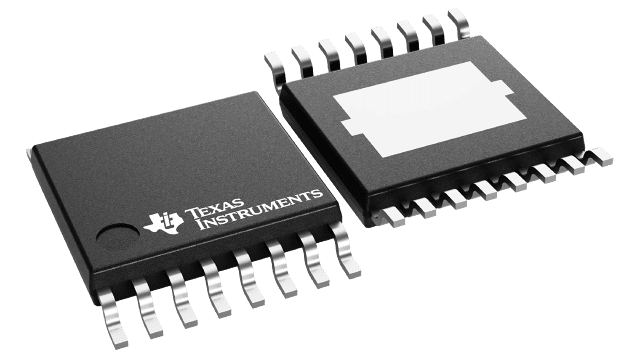

TPS92643QPWPRQ1


YeeHing #: Y012-TPS92643QPWPRQ1
Inventory: 8200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS92643QPWPRQ1 Texas Instruments - Yeehing Electronics

Automotive 3-A synchronous buck infrared LED driver

Pricing (USD)

Quantity Unit Price
1 — 99 2.072
100 — 249 1.711
250 — 999 1.229
1,000 + 0.65

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS92643QPWPRQ1 Datasheet

More Information

The TPS92643-Q1 is a monolithic, synchronous Buck LED driver with a wide 5.5-V to 36-V operating input voltage range and 40-V tolerance that supports load dump for duration of 400 ms. The TPS92643-Q1 implements an adaptive on-time average current mode control based on inductor valley current detection. The adaptive on-time control provides near constant switching frequency that can be set between 100 kHz and 2.2 MHz. Inductor current sensing and closed-loop feedback enables better than ±4% accuracy over wide input, output and ambient temperature.
