Texas Instruments
TPS92661QPHPRQ1
TPS92661QPHPRQ1
Regular price
$3.00 USD
Regular price
Sale price
$3.00 USD
Unit price
per
Couldn't load pickup availability

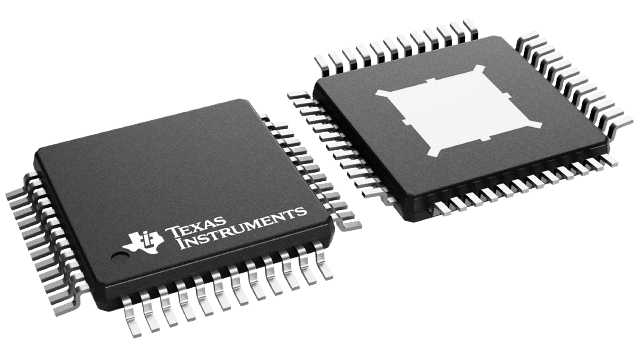

TPS92661QPHPRQ1 Texas Instruments - Yeehing Electronics
high-brightness LED matrix manager for automotive headlight systems
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.877 |
| 100 — 249 | 6.422 |
| 250 — 999 | 5.047 |
| 1,000 + | 3.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 12 Channel |
| Output Current | 1.5 A |
| Input Voltage | 4.5 V to 5.5 V |
| Operating Frequency | 16 MHz |
| Supply Current - Max | 1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Qualification | AEC-Q100 |
| Series | TPS92661-Q1 |
| Packaging | Reel |
| Features | Integrated Switch |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LED Drivers |
| Type | High Brightness LED Matrix Manager |
| Width | 7.2 mm |
| Brand | Texas Instruments |
| Topology | Boost, Buck |
| Development Kit | TPS92661EVM-001 |
| Moisture Sensitive | Yes |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 1000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.319998 oz |
For more information, please refer to datasheet
Documents
| TPS92661QPHPRQ1 Datasheet |
More Information
The TPS92661 device is a compact, highly-integrated solution for shunt FET dimming for large arrays of high-brightness LEDs in applications such as automotive headlights.
