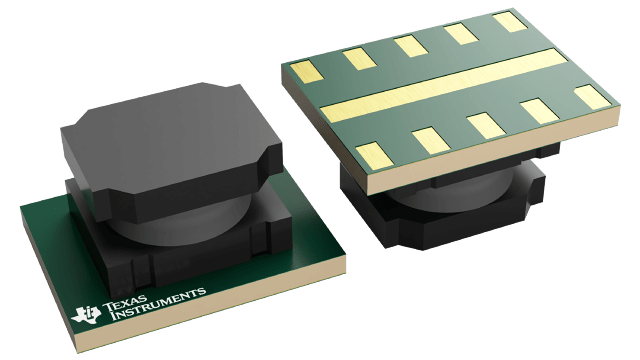

TPSM265R1V3SILR Texas Instruments - Yeehing Electronics
3-V to 65-V input, 100-mA, step-down power module in 2.8 x 3.7 mm package
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.204 |
100 — 249 | 2.807 |
250 — 999 | 1.968 |
1,000 + | 0.89 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPSM265R1V3SILR Datasheet |
More Information
The TPSM265R1 is a compact, easy-to-use module that operates over a wide input voltage range up to a maximum continuous input voltage of 65 V. The module fully integrates a controller, MOSFETs, and an output inductor. The module is designed to quickly and easily implement a power design in a small PCB footprint. There are two fixed output voltage options, 3.3 V and 5 V, and an adjustable output voltage option that can be adjusted from 1.223 V to 15 V. Each option has a load current rating of 100 mA. The TPSM265R1 operates in Pulse Frequency Modulation (PFM) mode, providing optimal efficiency at light loads. The control scheme does not require loop compensation, providing excellent line and load transient.
