Description
TPSM5601R5HEXTRDAR Texas Instruments - Yeehing Electronics
-55°C junction, 60-V input, 1-V to 16-V output, 1.5-A power module in enhanced HotRod™ QFN package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.894 |
| 100 — 249 | 6.435 |
| 250 — 999 | 5.058 |
| 1,000 + | 3.00 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPSM5601R5HEXTRDAR Datasheet |
More Information

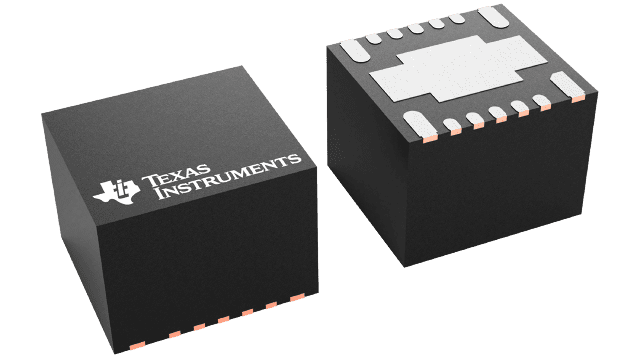

The TPSM5601R5Hx power module is a highly integrated 1.5-A power solution that combines a 60-V input, step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives in a thermally-enhanced QFN package. The 5-mm × 5.5-mm × 4-mm, 15-pin QFN package uses Enhanced HotRod QFN technology for enhanced thermal performance, small footprint, and low EMI. The package footprint has all pins accessible from the perimeter and a single large thermal pad for simple layout and easy handling in manufacturing.
