TPSM5601R5HSRDAR Texas Instruments - Yeehing Electronics

60-V input, 1-V to 16-V output, 1.5-A power module in enhanced HotRod™ QFN package

Pricing (USD)

Quantity	Unit Price
1 — 99	5.888
100 — 249	4.8
250 — 999	3.773
1,000 +	2.24

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPSM5601R5HSRDAR Datasheet

More Information

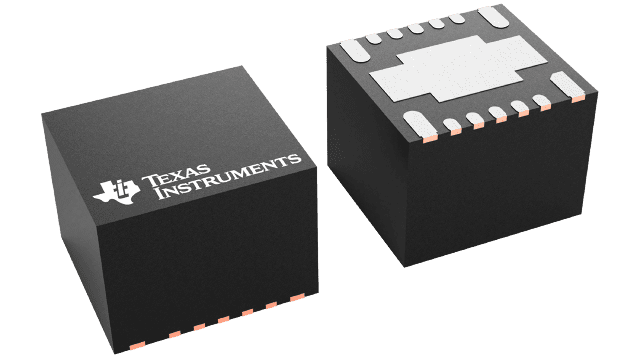

The TPSM5601R5Hx power module is a highly integrated 1.5-A power solution that combines a 60-V input, step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives in a thermally-enhanced QFN package. The 5-mm × 5.5-mm × 4-mm, 15-pin QFN package uses Enhanced HotRod QFN technology for enhanced thermal performance, small footprint, and low EMI. The package footprint has all pins accessible from the perimeter and a single large thermal pad for simple layout and easy handling in manufacturing.
