TPSM560R6HRDAR Texas Instruments - Yeehing Electronics
4.2-V to 60-V input, 1-V to 16-V output, 0.6-A step-down module in 5-mm x 5.5-mm x 4-mm QFN
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.152 |
| 100 — 249 | 4.2 |
| 250 — 999 | 3.301 |
| 1,000 + | 1.37 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPSM560R6HRDAR Datasheet |
More Information

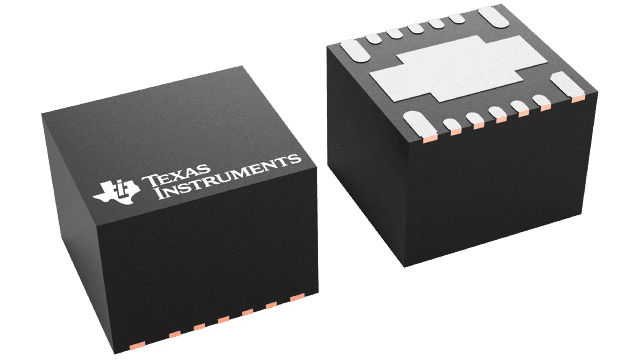

The TPSM560R6H power module is a highly integrated 600-mA power solution that combines a 60-V input, step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives in a thermally enhanced QFN package. The 5.0-mm × 5.5-mm × 4.0-mm, 15-pin QFN package uses enhanced HotRod QFN technology for enhanced thermal performance, small footprint, and low EMI. The package footprint has all pins accessible from the perimeter and a single large thermal pad for simple layout and easy handling in manufacturing.
