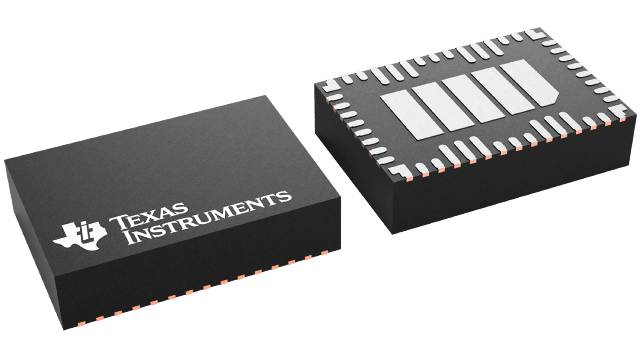

TPSM5D1806RDBR Texas Instruments - Yeehing Electronics

4.5-V to 15-V input, dual 6-A, single 12-A, output power module

Pricing (USD)

Quantity	Unit Price
1 — 99	19.92
100 — 249	17.4
250 — 999	13.416
1,000 +	8.40

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPSM5D1806RDBR Datasheet

More Information

The TPSM5D1806 dual 6-A output power module is a highly integrated and flexible DC-DC power supply packaged in a compact 8-mm × 5.5-mm × 1.8-mm, QFN package. The input voltage range of 4.5 V to 15 V allows conversion from a wide intermediate bus as well as standard 5-V and 12-V rails. The two 6-A outputs can be configured independently for two separate power rails or combined for a single 2-phase, 12-A output.
