Texas Instruments
TPSM82480MOPT
TPSM82480MOPT
Regular price
$1.99 USD
Regular price
Sale price
$1.99 USD
Unit price
per
Couldn't load pickup availability

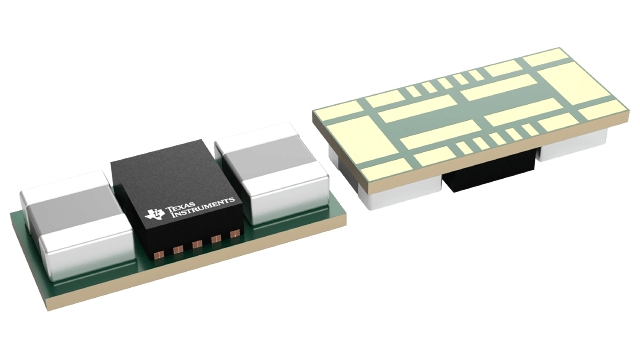

TPSM82480MOPT Texas Instruments - Yeehing Electronics
6-A, 5.5-V Input step-down power module with PG, MODE, and VSEL options
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.218 |
| 100 — 249 | 4.254 |
| 250 — 999 | 3.344 |
| 1,000 + | 1.99 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFM-24 |
| Output Voltage | 0.6 V to 5.5 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.4 V |
| Switching Frequency | 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPSM82480 |
| Packaging | Reel |
| Input Voltage | 3.6 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 23 uA |
| Type | Step-Down Converter Module |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.02 %/A |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.4 V |
| Part # Aliases | TPSM82480MOPR |
For more information, please refer to datasheet
Documents
| TPSM82480MOPT Datasheet |
More Information
The TPSM82480 is a synchronous step-down DC-DC converter module for low profile point-of-load power supplies. The input voltage range of 2.4 V to 5.5 V enables operation from typical 3.3-V or 5-V interface supplies as well as from backup circuits dropping down as low as 2.4 V.
