Texas Instruments
TPSM84209RKHT
TPSM84209RKHT
Regular price
$1.01 USD
Regular price
Sale price
$1.01 USD
Unit price
per
Couldn't load pickup availability

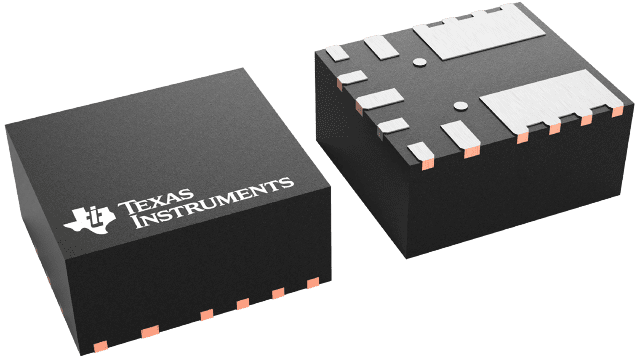

TPSM84209RKHT Texas Instruments - Yeehing Electronics
4.5-V to 28-V input, 1.2-V to 6-V output, 2.5-A power module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.909 |
| 100 — 249 | 2.549 |
| 250 — 999 | 1.787 |
| 1,000 + | 1.01 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-FCMOD-9 |
| Output Voltage | 1.2 V to 6 V |
| Output Current | 2.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 28 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 750 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPSM84209 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 28 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 2 uA |
| Type | Power Module |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPSM84209EVM |
| Load Regulation | 0.5 % |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
For more information, please refer to datasheet
Documents
| TPSM84209RKHT Datasheet |
More Information
The TPSM84209 power module is an easy-to-use integrated power supply that combines a 2.5-A DC/DC converter with a shielded inductor and passives into a low-profile QFN package. This total power solution allows as few as four external components while maintaining an ability to adjust key parameters to meet specific design requirements.
