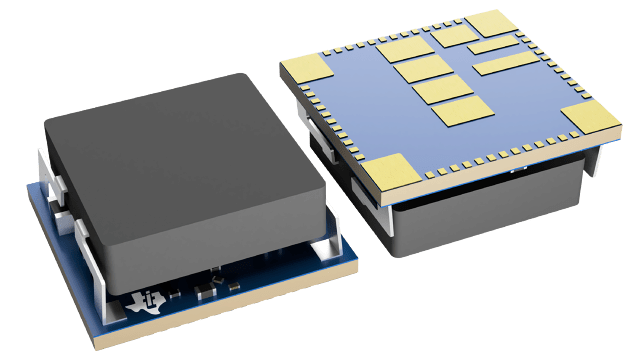

TPSM846C23MOLR Texas Instruments - Yeehing Electronics
4.5V to 15V Input, 0.35V to 2.0V Output, 35A PMBus Power Module
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 23.286 |
100 — 249 | 20.341 |
250 — 999 | 15.683 |
1,000 + | 20.57 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | QFM-59 |
Output Voltage | 350 mV to 2 V |
Output Current | 35 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 15 V |
Topology | Buck |
Input Voltage MIN | 4.5 V |
Switching Frequency | 300 kHz to 1 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Series | TPSM846C23 |
Packaging | Reel |
Input Voltage | 4.5 V to 15 V |
Operating Temperature Range | - 40 C to + 105 C |
Type | Step Down Power Module |
Brand | Texas Instruments |
Shutdown | Shutdown |
Moisture Sensitive | Yes |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 350 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 4.5 V |
Unit Weight | 0.130658 oz |
For more information, please refer to datasheet
Documents
TPSM846C23MOLR Datasheet |
More Information
The TPSM846C23 is a 35-A fixed-frequency, PMBus-compliant, step-down power module, with PMBus commands that allow for the configuration, control, and monitoring of key power regulator functions. The module incorporates the controller, power MOSFETs, inductor, and associated components into a rugged, thermally enhanced, surface-mount package. The user supplies the input and output capacitors along with a few other passive components to set the operating parameters of the module. Two modules can be configured to work in parallel to provide up to a 70-A, two-phase power solution.
