Texas Instruments

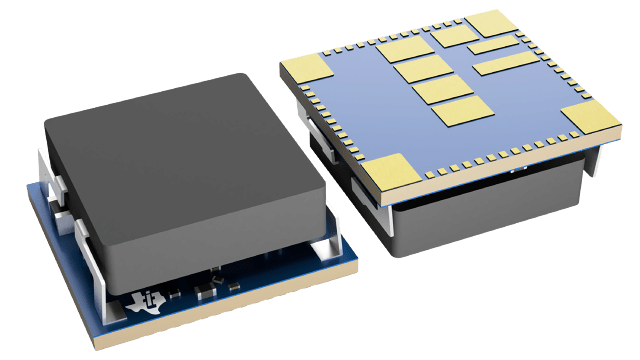

TPSM846C24MOLR
TPSM846C24MOLR
Regular price
$8.45 USD
Regular price
Sale price
$8.45 USD
Unit price
per
Couldn't load pickup availability
TPSM846C24MOLR Texas Instruments - Yeehing Electronics
4.5-V to 15-V Input, 0.5-V to 2.0-V output, 35-A power module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 20.045 |
| 100 — 249 | 17.509 |
| 250 — 999 | 13.5 |
| 1,000 + | 8.45 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFM-59 |
| Output Voltage | 0.5 V to 2 V |
| Output Current | 35 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 15 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 500 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Series | TPSM846C24 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 15 V |
| Operating Temperature Range | - 40 C to + 105 C |
| Type | Step-Down Power Module |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPSM846C24EVM-006 |
| Load Regulation | 0.2 % |
| Moisture Sensitive | Yes |
| Operating Supply Current | 7.7 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 350 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
For more information, please refer to datasheet
Documents
| TPSM846C24MOLR Datasheet |
More Information
The TPSM846C24 is a 35-A, fixed-frequency, step-down power module. The module incorporates the controller, power MOSFETs, inductor, and associated components into a rugged, thermally enhanced, surface-mount package. The user supplies the input and output capacitors along with a few other passive components to set the operating parameters of the module. Two modules can be configured to work in parallel to provide up to a 70-A, two-phase power solution.
