Texas Instruments
TPSM84824MOLR
TPSM84824MOLR
Regular price
$3.32 USD
Regular price
Sale price
$3.32 USD
Unit price
per
Couldn't load pickup availability

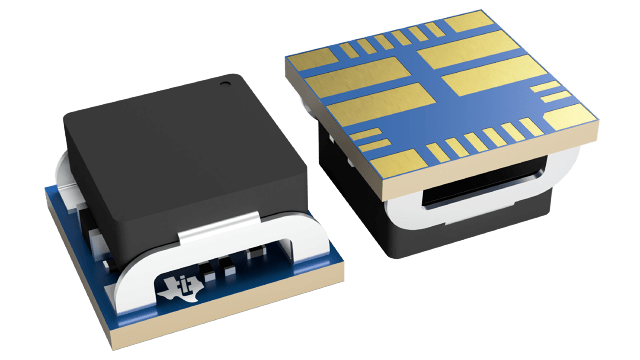

TPSM84824MOLR Texas Instruments - Yeehing Electronics
4.5V to 17V Input, 0.6V-10V Output, 8A Power Module in Compact 7.5x7.5mm Footprint
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.74 |
| 100 — 249 | 7.125 |
| 250 — 999 | 5.6 |
| 1,000 + | 3.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | QFM-24 |
| Output Voltage | 0.6 V to 10 V |
| Output Current | 8 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 17 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 200 kHz to 1.6 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Series | TPSM84824 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 17 V |
| Operating Temperature Range | - 40 C to + 105 C |
| Type | Step-Down Power Module |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPSM84824EVM-013 |
| Load Regulation | 0.8 mV |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
For more information, please refer to datasheet
Documents
| TPSM84824MOLR Datasheet |
More Information
The TPSM84824 power module is an easy-to-use integrated power supply that combines an 8-A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form-factor QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature. TurboTrans allows the transient response to be optimized for reduced output voltage deviation with less required output capacitance.
