Texas Instruments
TPSM84A21MOJT
TPSM84A21MOJT
Regular price
$4.20 USD
Regular price
Sale price
$4.20 USD
Unit price
per
Couldn't load pickup availability

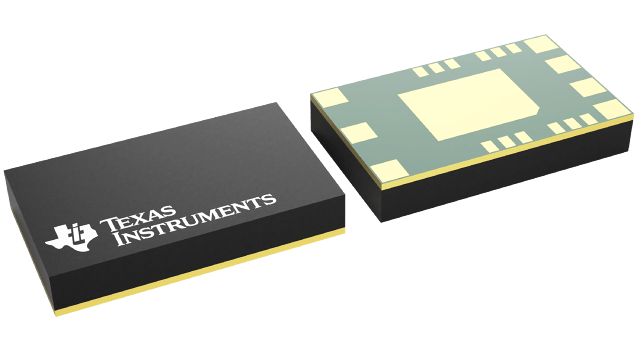

TPSM84A21MOJT Texas Instruments - Yeehing Electronics
8V to 14V, 0.508V to 1.35V Output, 10A Power Module with Integrated Input and Output Capacitors
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.96 |
| 100 — 249 | 8.7 |
| 250 — 999 | 6.708 |
| 1,000 + | 4.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFM-20 |
| Output Voltage | 508 mV to 1.35 V |
| Output Current | 10 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 14 V |
| Topology | Buck |
| Input Voltage MIN | 8 V |
| Switching Frequency | 4 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPSM84A21 |
| Packaging | Reel |
| Input Voltage | 8 V to 14 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Synchronous Buck Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPSM84A21EVM-808 |
| Load Regulation | 0.1 % |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 8 V |
| Tradename | SWIFT |
| Unit Weight | 0.025694 oz |
For more information, please refer to datasheet
Documents
| TPSM84A21MOJT Datasheet |
More Information
The TPSM84A21 is an easy-to-use integrated power solution that combines the TPS54A20, a 10-A, DC/DC, synchronous, step-down converter with power MOSFETs, shielded inductors, input and output capacitors, and passives into a low profile package. This total power solution requires only one voltage-setting resistor, and eliminates the loop compensation and magnetics part selection from the design process.
