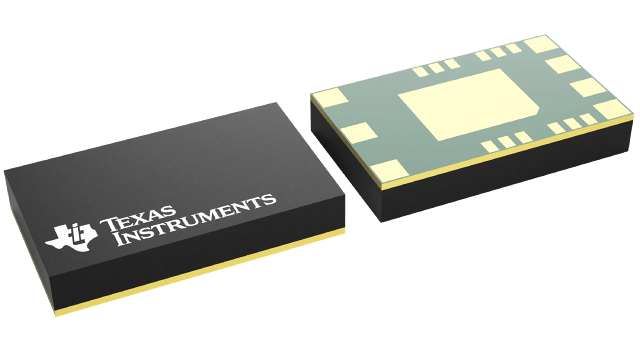

TPSM84A22MOJT


YeeHing #: Y012-TPSM84A22MOJT
Inventory: 4500

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPSM84A22MOJT Texas Instruments - Yeehing Electronics

8V to 14V Input, 1.2V to 2.05V Output, 10A Power Module with Integrated Input and Output Capacitors

Pricing (USD)

Quantity Unit Price
1 — 99 9.96
100 — 249 8.7
250 — 999 6.708
1,000 + 4.80

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case QFM-20
Output Voltage 1.2 V to 2.05 V
Output Current 10 A
Number of Outputs 1 Output
Input Voltage MAX 14 V
Topology Buck
Input Voltage MIN 8 V
Switching Frequency 4 MHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series TPSM84A22
Packaging Reel
Input Voltage 8 V to 14 V
Operating Temperature Range - 40 C to + 85 C
Type Synchronous Buck Converter
Brand Texas Instruments
Shutdown Shutdown
Development Kit TPSM84A22EVM-809
Load Regulation 0.1 %
Moisture Sensitive Yes
Product Type Switching Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 8 V
Tradename SWIFT
Unit Weight 0.025218 oz

For more information, please refer to datasheet

Documents

TPSM84A22MOJT Datasheet

More Information

The TPSM84A22 is an easy-to-use integrated power solution that combines the TPS54A20, a 10-A, DC/DC, synchronous, step-down converter with power MOSFETs, shielded inductors, input and output capacitors, and passives into a low profile package. This total power solution requires only one voltage-setting resistor, and eliminates the loop compensation and magnetics part selection from the design process.
