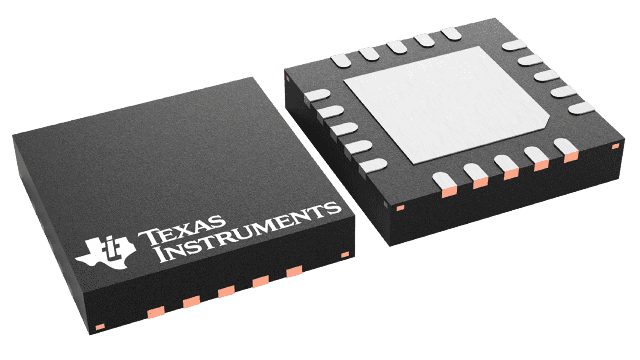

TRSF3223EIRGWR Texas Instruments - Yeehing Electronics
3- to 5.5-V dual channel 1Mbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.859 |
| 100 — 249 | 1.536 |
| 250 — 999 | 1.103 |
| 1,000 + | 0.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RS-232 Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Series | TRSF3223E |
| Function | Transceiver |
| Data Rate | 1000 kb/s |
| Number of Drivers | 2 Driver |
| Number of Receivers | 2 Receiver |
| Duplex | Full Duplex |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Product | RS-232 Transceivers |
| Brand | Texas Instruments |
| Shutdown | With Shutdown |
| Operating Supply Voltage | 3.3 V, 5 V |
| Product Type | RS-232 Interface IC |
| Propagation Delay Time | 0.15 us |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| TRSF3223EIRGWR Datasheet |
More Information
The TRSF3223E consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). This device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The TRSF3223E operates at typical data signaling rates up to 1000 kbit/s.
