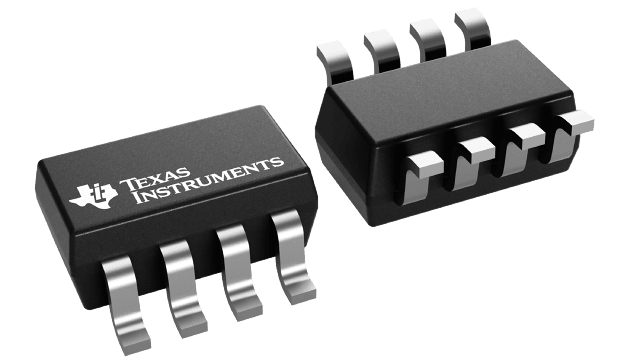

TS12A12511DCNR Texas Instruments - Yeehing Electronics
12-V, 2:1 (SPDT), 1-channel analog switch with negative signaling capability
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.559 |
| 100 — 249 | 1.288 |
| 250 — 999 | 0.925 |
| 1,000 + | 0.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 1 Switch |
| Configuration | 1 x SPDT |
| On Resistance - Max | 8 Ohms |
| Switch Voltage - Max | 5 V |
| On Time - Max | 115 ns |
| Off Time - Max | 56 ns |
| Operating Supply Voltage | 2.7 V to 12 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-23-8 |
| Packaging | Reel |
| Series | TS12A12511 |
| Supply Type | Single Supply, Dual Supply |
| Brand | Texas Instruments |
| Supply Current - Max | 0.2 uA |
| Dual Supply Voltage | +/- 2.7 V to +/- 6 V |
| Maximum Dual Supply Voltage | +/- 6 V |
| Minimum Dual Supply Voltage | +/- 2.7 V |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 12 V |
| Supply Voltage - Min | 2.7 V |
| Switch Continuous Current | 50 mA |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| TS12A12511DCNR Datasheet |
More Information
The TS12A12511 is a bidirectional, single-channel, single-pole double-throw (SPDT) analog switch that can pass signals with swings of 0 to 12 V or –6 V to 6 V. This switch conducts equally well in both directions when it is on. The device also offers a low ON-state resistance of 5 Ω (typical), which is matched to within 1 Ω between channels. The maximum current consumption is <1 µA and –3 dB bandwidth is >93 MHz. The TS12A12511 exhibits break-before-make switching action, preventing momentary shorting when switching channels. This device is available packaged in an 8-lead VSSOP, 8-lead SOT-23, and a 8-pin WSON.
