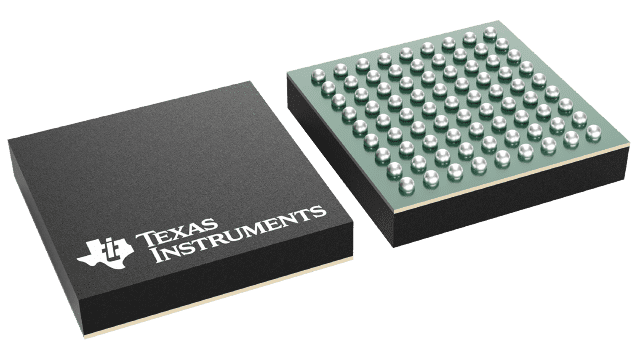

TS2PCIE2212ZAHRG1 Texas Instruments - Yeehing Electronics
4-channel PCIe 2:1 multiplexer/demultiplexer passive FET switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.515 |
| 100 — 249 | 3.08 |
| 250 — 999 | 2.159 |
| 1,000 + | 1.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | PCI Interface IC |
| RoHS | Y |
| Operating Supply Voltage | 1.8 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-48 |
| Packaging | Reel |
| Series | TS2PCIE2212 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | PCI Interface IC |
| Propagation Delay Time | 0.25 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001824 oz |
For more information, please refer to datasheet
Documents
| TS2PCIE2212ZAHRG1 Datasheet |
More Information
The TS2PCIE2212 can be used to muxltiplex/demultiplex two PCI Express lanes, each representing differential pairs of receive (RX) and transmit (TX) signals. The switch operates at the PCI Express bandwidth standard of 2.5-Gbps signal-processing speed. The device is composed of two banks, with each bank accommodating two sources (source A and source B) and two destinations (destination A and destination B).
