Texas Instruments

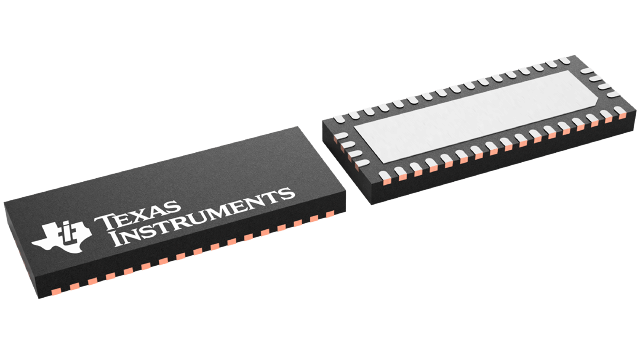

TS2PCIE412RUAR
TS2PCIE412RUAR
Regular price
$0.82 USD
Regular price
Sale price
$0.82 USD
Unit price
per
Couldn't load pickup availability
TS2PCIE412RUAR Texas Instruments - Yeehing Electronics
4-channel PCIe 8:16 multiplexer & demultiplexer passive FET switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.307 |
| 100 — 249 | 1.906 |
| 250 — 999 | 1.369 |
| 1,000 + | 0.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | PCI Interface IC |
| RoHS | Y |
| Operating Supply Voltage | 1.5 V to 2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-42 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 9.1 mm |
| Series | TS2PCIE412 |
| Width | 3.6 mm |
| Brand | Texas Instruments |
| Product Type | PCI Interface IC |
| Propagation Delay Time | 0.28 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001933 oz |
For more information, please refer to datasheet
Documents
| TS2PCIE412RUAR Datasheet |
More Information
The TS2PCIE412 is a 4-channel PCIe 2:1 multiplexer/demultiplexer switch that can be used to route one PCIe data lane between two possible destinations or two PCIe data lanes to one destination. Each channel consists of differential pairs of receive (RX) and transmit (TX) signals and operates at a signal-processing bandwidth speed, which supports the PCIe standard of 2.5 Gbps. The device is controlled with one select input (SEL) pin, where SEL controls the data path of the multiplexer/demultiplexer and can be connected to any GPIO in the system. The unselected channel is set in a high-impedance state.
