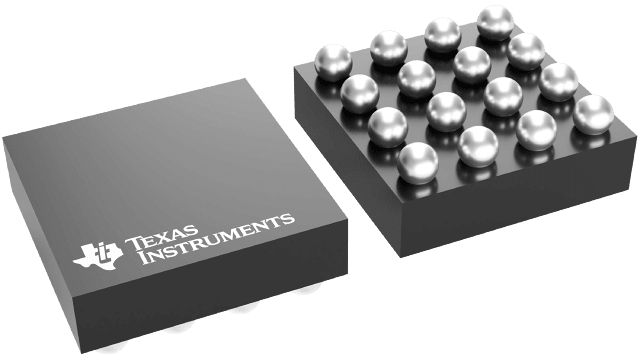

TS3A225EYFFR Texas Instruments - Yeehing Electronics
100-mΩ audio jack switch with autonomous microphone & ground detection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.694 |
| 100 — 249 | 0.534 |
| 250 — 999 | 0.393 |
| 1,000 + | 0.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 2 Switch |
| Configuration | 2 x SPDT |
| On Resistance - Max | 10 Ohms |
| Switch Voltage - Max | 3.3 V |
| Operating Supply Voltage | 2.7 V to 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-16 |
| Packaging | Reel |
| Series | TS3A225E |
| Supply Type | Single Supply |
| Brand | Texas Instruments |
| Supply Current - Max | 10 uA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 4.5 V |
| Supply Voltage - Min | 2.7 V |
For more information, please refer to datasheet
Documents
| TS3A225EYFFR Datasheet |
More Information
The TS3A225E is an audio headset switch device. The device detects the presence of an analog microphone and switches a system analog microphone pin between different connectors in an audio stereo jack. The microphone connection in a stereo connector can be swapped with the ground connection depending on manufacturer. When the TS3A225E detects a certain configuration, the device automatically connects the microphone line to the appropriate pin. The device also reports the presence of an analog microphone on an audio stereo jack.
