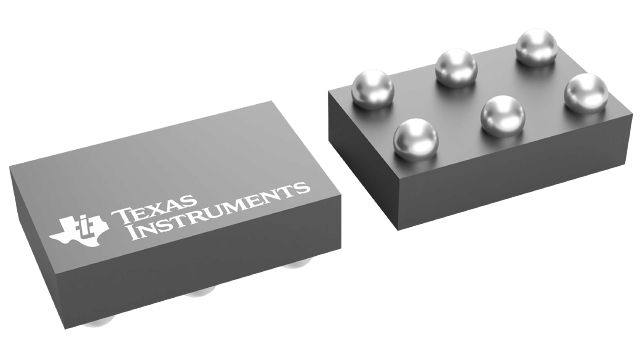

TS3A26746EYZPR Texas Instruments - Yeehing Electronics
80-mΩ, 3.3-V, 2 x 2 crosspoint switch for audio applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.511 |
| 100 — 249 | 0.393 |
| 250 — 999 | 0.29 |
| 1,000 + | 0.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog & Digital Crosspoint ICs |
| RoHS | Y |
| Series | TS3A26746E |
| Product | Audio Crosspoint Switches |
| Configuration | 2 x 2 |
| Data Rate | - |
| Input Type | - |
| Output Type | - |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| Product Type | Analog & Digital Crosspoint ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| TS3A26746EYZPR Datasheet |
More Information
The TS3A26746E is a 2 × 2 cross-point switch that is used to interchange the Ground and MIC connections on a headphone connector. The Ground switch has an ultra low RON of <0.1Ω to minimize voltage drop across it, preventing undesired increases in headphone ground reference voltage. The switch state is controlled via the SEL input. When SEL=High, GND is connected to RING2 and MIC is connected to SLEEVE. When SEL=Low, GND is connected to SLEEVE and MIC is connected to RING2. An internal 100k pull-up resistor on the SEL input sets the default state of the switch.
