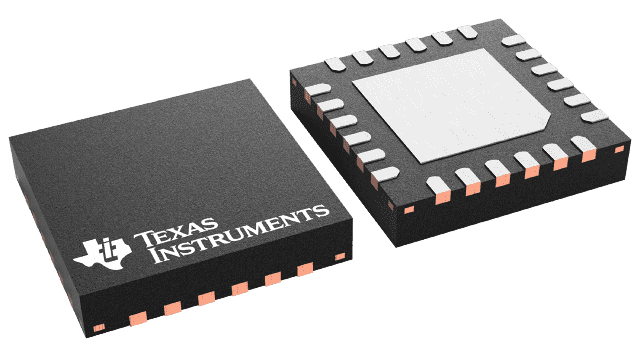

TS3A27518ERTWR Texas Instruments - Yeehing Electronics
3.3-V, 2:1 (SPDT), 6-channel analog multiplexer with 1.8-V compatible control inputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.31 |
100 — 249 | 1.082 |
250 — 999 | 0.777 |
1,000 + | 0.41 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TS3A27518ERTWR Datasheet |
More Information
The TS3A27518E is a bidirectional, 6-channel, 1:2 multiplexer-demultiplexer designed to operate from 1.65 V to 3.6 V. This device can handle both digital and analog signals, and can transmit signals up to VCC in either direction. The TS3A27518E has two control pins, each controlling three 1:2 muxes at the same time, and an enable pin that put all outputs in high-impedance mode. The control pins are compatible with 1.8 V logic thresholds and are backward compatible with 2.5 V and 3.3 V logic thresholds.
