TS3A27518ETRTWRQ1 Texas Instruments - Yeehing Electronics

Automotive 3.3-V, 2:1 (SPDT), 6-channel, analog multiplexer with 1.8-V compatible control inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.376
100 — 249	1.205
250 — 999	0.845
1,000 +	0.48

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Multiplexer Switch ICs
RoHS	Y
Product	Multiplexers/Demultiplexers
Number of Channels	6 Channel
Configuration	6 x 2
On Resistance - Max	7.6 Ohms
On Time - Max	68 ns
Off Time - Max	70 ns
Operating Supply Voltage	1.65 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT

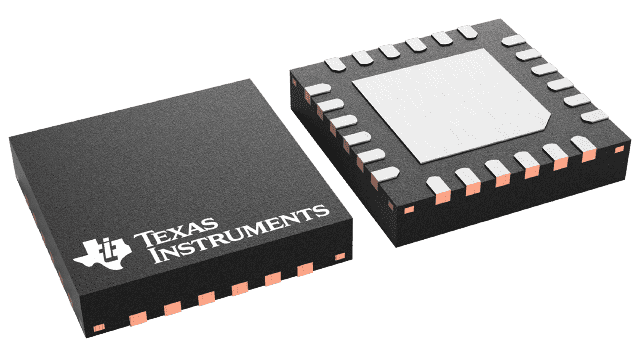

Package / Case	WQFN-24
Qualification	AEC-Q100
Packaging	Reel
Bandwidth	240 MHz
Series	TS3A27518E-Q1
Brand	Texas Instruments
Supply Current - Max	1.2 uA
Moisture Sensitive	Yes
Product Type	Multiplexer Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.65 V
Unit Weight	0.001277 oz

For more information, please refer to datasheet

Documents

TS3A27518ETRTWRQ1 Datasheet

More Information

The TS3A27518E-Q1 is a 6-bit 1-of-2 multiplexer-demultiplexer designed to operate from 1.65 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction. The TS3A27518E-Q1 has two control pins, each controlling three 1-of-2 muxes at the same time, and an enable pin that is used to put all outputs in high-impedance mode. The control pins are compatible with 1.8-V logic thresholds and are backward compatible with 2.5-V and 3.3-V logic thresholds as well.
