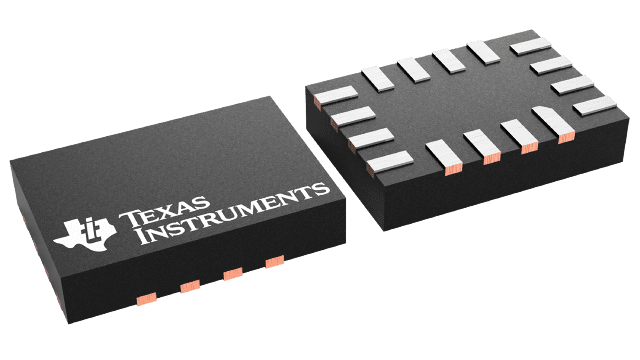

TS3A44159RSVR Texas Instruments - Yeehing Electronics

0.4-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 4-channel analog switch

Pricing (USD)

Quantity	Unit Price
1 — 99	0.571
100 — 249	0.439
250 — 999	0.323
1,000 +	0.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Switch ICs
RoHS	Y
Number of Switches	4 Switch
Configuration	4 x SPDT, 2 x DPDT
On Resistance - Max	450 mOhms
Switch Voltage - Max	4.3 V
On Time - Max	23 ns
Off Time - Max	32 ns
Operating Supply Voltage	1.65 V to 4.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	UQFN-16
Packaging	Reel
Height	0.55 mm
Length	1.8 mm
Series	TS3A44159
Supply Type	Single Supply
Width	2.6 mm
Brand	Texas Instruments
Supply Current - Max	0.7 uA
Product Type	Analog Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	4.3 V
Supply Voltage - Min	1.65 V
Switch Continuous Current	100 mA
Unit Weight	0.001443 oz

For more information, please refer to datasheet

Documents

TS3A44159RSVR Datasheet

More Information

The TS3A44159 is a bidirectional 4-channel single-pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65 V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. It offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications
