Texas Instruments
TS3A4751RUCR
TS3A4751RUCR
Regular price
$0.41 USD
Regular price
Sale price
$0.41 USD
Unit price
per
Couldn't load pickup availability

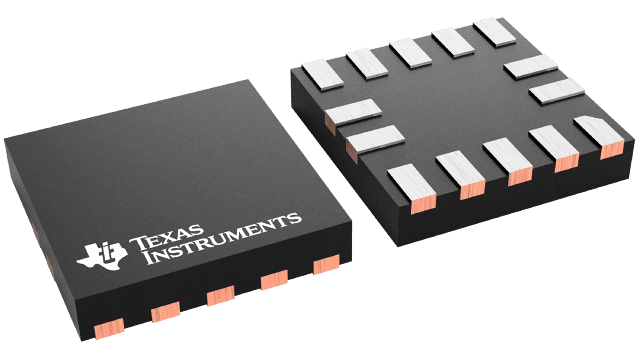

TS3A4751RUCR Texas Instruments - Yeehing Electronics
0.9-Ω on-state resistance, 3.3-V, 1:1 (SPST), 4-channel analog switch with 1.8-V input logic
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.455 |
| 100 — 249 | 1.119 |
| 250 — 999 | 0.824 |
| 1,000 + | 0.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 4 Switch |
| Configuration | 4 x SPST |
| On Resistance - Max | 900 mOhms |
| Switch Voltage - Max | 3 V |
| On Time - Max | 14 ns |
| Off Time - Max | 9 ns |
| Operating Supply Voltage | 1.65 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | X2QFN-14 |
| Packaging | Reel |
| Height | 0.35 mm |
| Length | 2 mm |
| Series | TS3A4751 |
| Supply Type | Single Supply |
| Width | 2 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 75 nA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.65 V |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.000134 oz |
For more information, please refer to datasheet
Documents
| TS3A4751RUCR Datasheet |
More Information
The TS3A4751 device is a bidirectional, 4-channel, normally open (NO) single-pole single-throw (SPST) analog switch that operates from a single 1.6-V to 3.6-V supply. This device has fast switching speeds, handles rail-to-rail analog signals, and consumes very low quiescent power.
