Texas Instruments
TS3A5018RSVR
TS3A5018RSVR
Regular price
$0.16 USD
Regular price
Sale price
$0.16 USD
Unit price
per
Couldn't load pickup availability

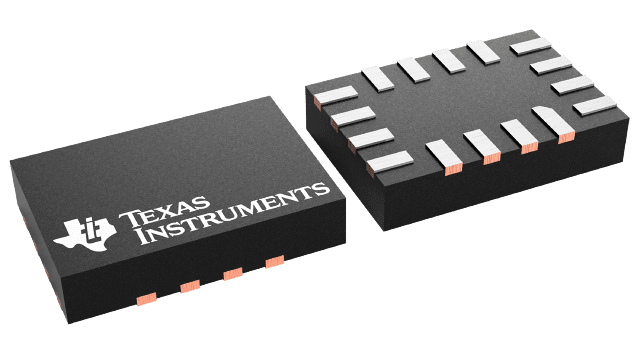

TS3A5018RSVR Texas Instruments - Yeehing Electronics
3.3-V, 2:1 (SPDT), 4-channel general-purpose analog switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.563 |
| 100 — 249 | 0.433 |
| 250 — 999 | 0.319 |
| 1,000 + | 0.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 4 Switch |
| Configuration | 4 x SPDT |
| On Resistance - Max | 10 Ohms |
| Switch Voltage - Max | 3.3 V |
| On Time - Max | 8 ns |
| Off Time - Max | 6.5 ns |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-16 |
| Packaging | Reel |
| Series | TS3A5018 |
| Supply Type | Single Supply |
| Brand | Texas Instruments |
| Supply Current - Max | 7 uA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.8 V |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.001443 oz |
For more information, please refer to datasheet
Documents
| TS3A5018RSVR Datasheet |
More Information
The TS3A5018 device is a quad single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 3.6 V. This device can handle digital and analog signals, and signals up to V+ can be transmitted in either direction.
