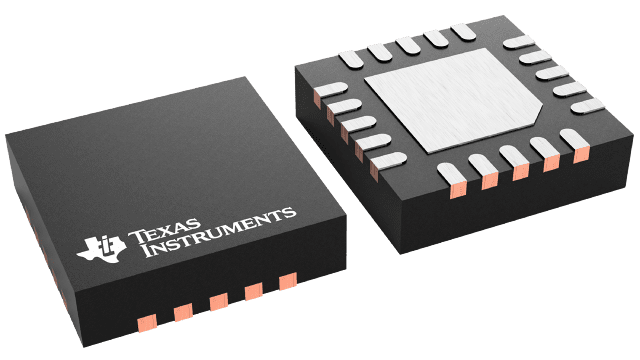

TS3DS10224RUKR Texas Instruments - Yeehing Electronics
3.3-V, 4:1 differential 1-channel or 2:1 differential 2-channel analog multiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.783 |
| 100 — 249 | 0.602 |
| 250 — 999 | 0.443 |
| 1,000 + | 0.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Multiplexer Switch ICs |
| RoHS | Y |
| Product | Multiplexers/Demultiplexers |
| Number of Channels | 2 Channel |
| Configuration | 2 x 2 |
| On Resistance - Max | 19 Ohms |
| On Time - Max | 100 ns |
| Off Time - Max | 30 ns |
| Operating Supply Voltage | 3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-20 |
| Packaging | Reel |
| Bandwidth | 1200 MHz |
| Height | 0.8 mm |
| Length | 3 mm |
| Series | TS3DS10224 |
| Supply Type | Single Supply |
| Width | 3 mm |
| Brand | Texas Instruments |
| Off Isolation - Typ | - 30 dB |
| Supply Current - Max | 100 uA |
| Moisture Sensitive | Yes |
| Product Type | Multiplexer Switch ICs |
| Propagation Delay Time | 0.05 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.001344 oz |
For more information, please refer to datasheet
Documents
| TS3DS10224RUKR Datasheet |
More Information
The TS3DS10224 device is a bidirectional differential crosspoint, 1:4, or 1:2 multiplexer and demultiplexer; or fan-out switch for high-speed differential signal applications (up to 720 Mbps). The TS3DS10224 logic table can route any input to any output creating a wide range of possible switching or multiplexing configurations. Common configurations include: differential crosspoint switching, differential 1:4 mux, or differential 2-channel 1:2 multiplexer and demultiplexer. The TS3DS10224 offers a high BW of 1.2 GHz with channel RON of 13 Ω (typical).
