TS3DS26227YZTR Texas Instruments - Yeehing Electronics
3.3-V, 2:1 (SPDT), 2-channel differential signal switch with input logic translation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.533 |
| 100 — 249 | 0.44 |
| 250 — 999 | 0.316 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 2 Switch |
| Configuration | 2 x SPDT |
| On Resistance - Max | 5 Ohms |
| Switch Voltage - Max | 3.3 V |
| On Time - Max | 9 ns |
| Off Time - Max | 4 ns |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

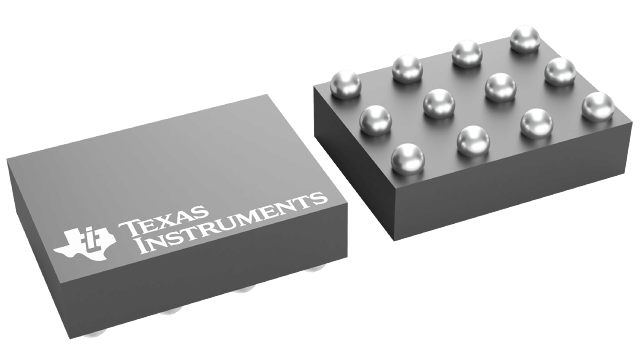

| Package / Case | WCSP-12 |
| Packaging | Reel |
| Height | 0.48 mm |
| Length | 1.9 mm |
| Series | TS3DS26227 |
| Supply Type | Single Supply |
| Width | 1.4 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 20 nA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2.3 V |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.000085 oz |
For more information, please refer to datasheet
Documents
| TS3DS26227YZTR Datasheet |
More Information
The TS3DS26227 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from
