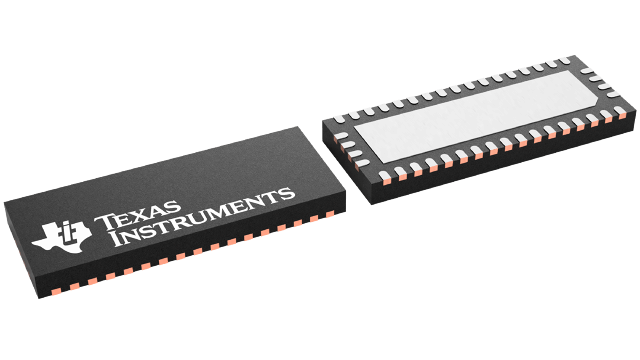

TS3DV520ERUAR Texas Instruments - Yeehing Electronics
1.65-Gbps 5-channel differential 10-to-20 and 20-to-10 mux for DVI 1.0/HDMI 1.2 with enhanced ESD
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.402 |
100 — 249 | 1.228 |
250 — 999 | 0.861 |
1,000 + | 0.49 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Multiplexer Switch ICs |
RoHS | Y |
Product | Multiplexers |
Number of Channels | 5 Channel |
Configuration | 5 x 10 |
On Resistance - Max | 950 Ohms |
On Time - Max | 500 ns |
Off Time - Max | 9 ns |
Operating Supply Voltage | 9 V to 36 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-42 |
Packaging | Reel |
Height | 0.75 mm |
Length | 9 mm |
Series | TS3DV520E |
Supply Type | Single Supply, Dual Supply |
Width | 3.5 mm |
Brand | Texas Instruments |
Off Isolation - Typ | - 37 dB |
Maximum Dual Supply Voltage | +/- 20 V |
Product Type | Multiplexer Switch ICs |
Propagation Delay Time | 350 ns |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 36 V |
Supply Voltage - Min | 9 V |
Unit Weight | 0.001933 oz |
For more information, please refer to datasheet
Documents
TS3DV520ERUAR Datasheet |
More Information
The TS3DV520E is a 20-bit to 10-bit multiplexer/demultiplexer digital video switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides five differential channels for digital video signal switching.
