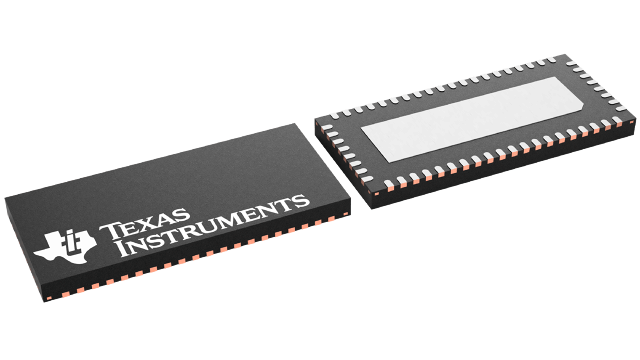

TS3DV520RHUR Texas Instruments - Yeehing Electronics
1.65-Gbps 5-channel differential 10-to-20 and 20-to-10 mux for DVI 1.0/HDMI 1.2a applications
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.091 |
100 — 249 | 1.832 |
250 — 999 | 1.284 |
1,000 + | 0.72 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Multiplexer Switch ICs |
RoHS | Y |
Product | Multiplexers |
Number of Channels | 5 Channel |
Configuration | 5 x 10 |
On Resistance - Max | 6 Ohms |
On Time - Max | 15 ns |
Off Time - Max | 9 ns |
Operating Supply Voltage | 3 V to 3.6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-56 |
Packaging | Reel |
Bandwidth | 1200 MHz |
Height | 0.75 mm |
Length | 11 mm |
Series | TS3DV520 |
Supply Type | Single Supply |
Width | 5 mm |
Brand | Texas Instruments |
Off Isolation - Typ | - 39 dB |
Supply Current - Max | 500 uA |
Product Type | Multiplexer Switch ICs |
Propagation Delay Time | 0.25 ns |
Factory Pack Quantity | 2000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Unit Weight | 0.004494 oz |
For more information, please refer to datasheet
Documents
TS3DV520RHUR Datasheet |
More Information
The TS3DV520 is a 20-bit to 10-bit multiplexer/demultiplexer digital video switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides five differential channels for digital video signal switching. This device can also be used to replace mechanical relays in LAN applications and allows for signals to be routed from a 10/100/1000 Base-T transceiver to the RJ-45 connectors in laptops or docking stations.
