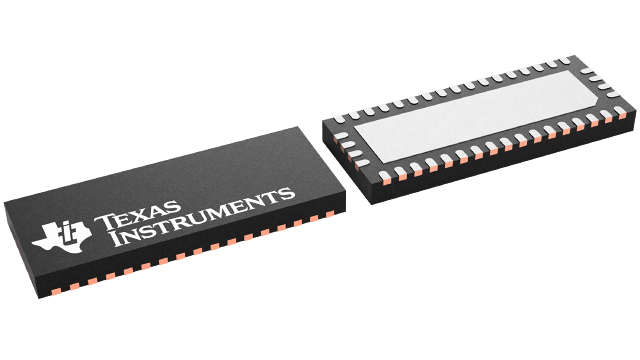

TS3DV642A0RUAR Texas Instruments - Yeehing Electronics

6-Gbps 12-channel differential 1-to-2 and 2-to-1 mux for DVI 1.0/ DisplayPort 1.4 /HDMI 2.0

Pricing (USD)

Quantity	Unit Price
1 — 99	1.183
100 — 249	0.977
250 — 999	0.702
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Multiplexer Switch ICs
RoHS	Y
Product	Multiplexers/Demultiplexers
Number of Channels	12 Channel
Configuration	12 x 2
On Resistance - Max	7 Ohms
On Time - Max	100 us
Operating Supply Voltage	2.6 V to 4.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-42
Packaging	Reel
Bandwidth	6 MHz
Series	TS3DV642
Brand	Texas Instruments
Off Isolation - Typ	- 40 dB
Development Kit	TS3DV642EVM
Moisture Sensitive	Yes
Product Type	Multiplexer Switch ICs
Propagation Delay Time	40 ps
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	4.5 V
Supply Voltage - Min	2.6 V
Unit Weight	0.001933 oz

For more information, please refer to datasheet

Documents

TS3DV642A0RUAR Datasheet

More Information

The TS3DV642 is a 12 channel 1:2 or 2:1 bi-directional multiplexer/demultiplexer. The TS3DV642 operates from a 2.6 V to 4.5 V supply, making it suitable for battery-powered applications. It offers low and flat on-state resistance (RON) as well as low I/O capacitance which allows it to achieve a typical bandwidth of up to 7.5 GHz. The device provides the high bandwidth necessary for HDMI and DisplayPort applications.
