Description

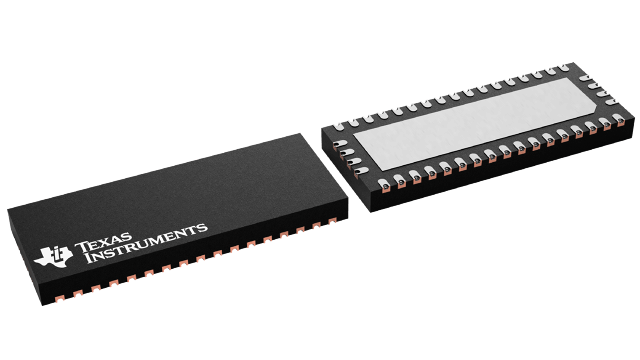

TS3DV642RUARQ1 Texas Instruments - Yeehing Electronics
6 Gbps 12-Channel differential 1-to-2 and 2-to-1 mux
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.115 |
| 100 — 249 | 1.746 |
| 250 — 999 | 1.255 |
| 1,000 + | 0.66 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TS3DV642RUARQ1 Datasheet |
More Information
The TS3DV642-Q1 is an analog high-speed bidirectional passive switch in mux or demux configurations that works for many high-speed differential interfaces with data rates up to 6 Gbps. It is suited for many applications including HDMI 1.4 / 2.0, DisplayPort 1.4 and Mipi DPHY / CPHY DSI / CSI-2. The TS3DV642-Q1 supports both differential and single-ended signaling - virtually compatible to most standard and non standard interfaces. The dynamic characteristics of the TS3DV642-Q1 allows high-speed switching with minimal attenuation to the signal eye diagram, and with very little added jitter. The devices silicon design is optimized for excellent frequency response at higher frequency spectrum of the signals. The device supports differential signaling with common mode voltage range (CMV) of 0 to 3.6 V. The device also supports 0 - 5.5 V single-ended CMOS signals.
