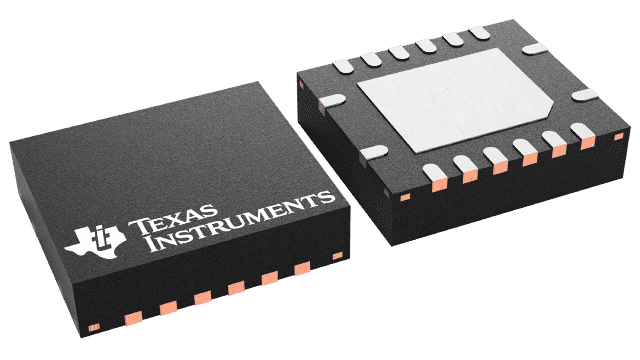

TS3L110RGYR Texas Instruments - Yeehing Electronics

3.3-V, 2:1 (SPDT), 4-channel 10/100 Base-T LAN switch

Pricing (USD)

Quantity	Unit Price
1 — 99	0.951
100 — 249	0.732
250 — 999	0.539
1,000 +	0.27

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TS3L110RGYR Datasheet

More Information

The TS3L110 local area network (LAN) switch is a 4-bit 1-of-2 multiplexer/demultiplexer with a single switch-enable (E) input. When E is low, the switch is enabled, and the I port is connected to the Y port. When E is high, the switch is disabled, and the high-impedance state exists between the I and Y ports. The select (S) input controls the data path of the multiplexer/demultiplexer.
