Texas Instruments

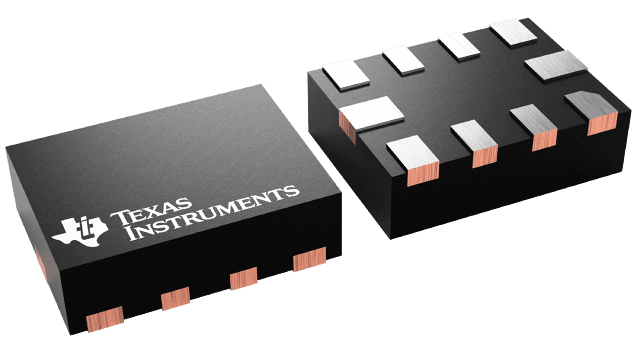

TS3USB221AQRSERQ1
TS3USB221AQRSERQ1
Couldn't load pickup availability
TS3USB221AQRSERQ1 Texas Instruments - Yeehing Electronics
Automotive ESD Protected,High-Speed USB 2.0 (480-Mbps) 1:2 Multiplexer/Demultiplexer Switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.062 |
| 100 — 249 | 0.817 |
| 250 — 999 | 0.602 |
| 1,000 + | 0.30 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0 Multiplexers/Demultiplexers |
| Configuration | 2 x 1 |
| On Resistance - Max | 6 Ohms |
| On Time - Max | 30 ns |
| Off Time - Max | 10 ns |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-10 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Bandwidth | 900 MHz |
| Series | TS3USB221A-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of Switches | 2 Switch |
| Operating Supply Current | 30 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.001164 oz |
For more information, please refer to datasheet
Documents
| TS3USB221AQRSERQ1 Datasheet |
More Information
The TS3USB221A-Q1 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in automotive USB hubs or controllers with limited USB I/Os. The wide bandwidth (900 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
