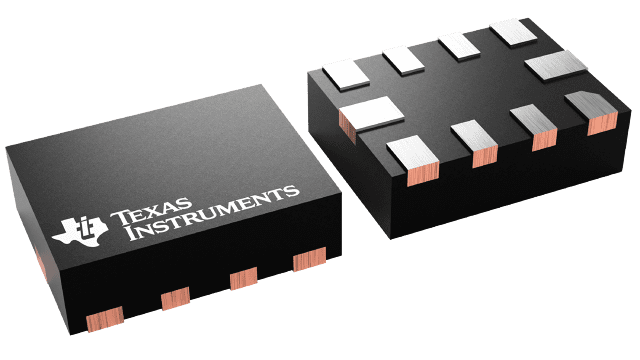

TS3USB3000MRSER Texas Instruments - Yeehing Electronics

DPDT USB 2.0 High-Speed and Mobile High-Definition Link (MHL) (6.1GHz) Switch

Pricing (USD)

Quantity	Unit Price
1 — 99	0.603
100 — 249	0.464
250 — 999	0.341
1,000 +	0.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Switch ICs
RoHS	Y
Product	USB 2.0 Multiplexers
Configuration	2 x 2
On Resistance - Max	9 Ohms
On Time - Max	400 ns
Off Time - Max	400 ns
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	UQFN-10
Packaging	Reel
Bandwidth	6.1 GHz
Series	TS3USB3000
Brand	Texas Instruments
Number of Switches	2 Switch
Operating Supply Current	50 uA
Product Type	USB Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	4.3 V
Supply Voltage - Min	2.7 V
Switch Continuous Current	100 mA
Unit Weight	0.000247 oz

For more information, please refer to datasheet

Documents

TS3USB3000MRSER Datasheet

More Information

The TS3USB3000 device is a double-pole, double throw (DPDT) multiplexer that includes a high-speed Mobile High-Definition Link (MHL) switch and an USB 2.0 High-Speed (480 Mbps) switch in the same package. These configurations allow the system designer to use a common USB or Micro-USB connector for both MHL video signals and USB data.
