Texas Instruments

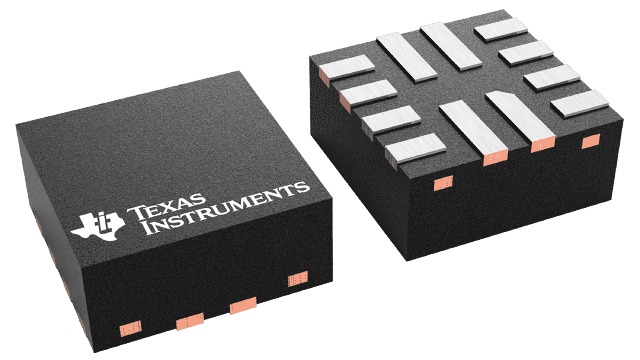

TS3USB3031RMGR
TS3USB3031RMGR
Regular price
$0.23 USD
Regular price
Sale price
$0.23 USD
Unit price
per
Couldn't load pickup availability
TS3USB3031RMGR Texas Instruments - Yeehing Electronics
DP3T USB 2.0 High-Speed and Mobile High-Definition Link (MHL) (6.5GHz) Switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.803 |
| 100 — 249 | 0.618 |
| 250 — 999 | 0.455 |
| 1,000 + | 0.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0, MHL, MyDP Switches |
| Configuration | 1 x DP3T |
| On Resistance - Max | 7 Ohms |
| On Time - Max | 100 us |
| Off Time - Max | 0.1 ns |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-12 |
| Packaging | Reel |
| Bandwidth | 6.5 GHz |
| Series | TS3USB3031 |
| Brand | Texas Instruments |
| Development Kit | TS3USB3031EVM |
| Number of Switches | 2 Switch |
| Operating Supply Current | 40 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 4.3 V |
| Supply Voltage - Min | 2.5 V |
| Switch Continuous Current | 60 mA |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| TS3USB3031RMGR Datasheet |
More Information
The TS3USB3031 device is a 2-channel, 1:3 multiplexer that includes a high-speed Mobile High-Definition Link (MHL), Mobility Display Port (MyDP) switch, and USB 2.0 High-Speed (480 Mbps) switches in the same package. These configurations allow the system designer to save board space and eliminate multiple connectors buy using a common USB or Mico-USB connector for MHL/MyDP signals and two sets of USB data. The MHL/MyDP path supports the latest MHL Rev. 3.0 specification.
